Element FinalDeliveryTransportationService
Namespace urn:dgpe:names:draft:codice:schema:xsd:CommonAggregateComponents-2

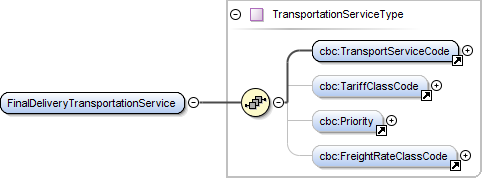

Diagram
Diagram CODICE-2.05934.tmp#id1476 CODICE-2.05935.tmp#id1478 CODICE-2.05936.tmp#id1480 CODICE-2.05937.tmp#id1482 CODICE-2.05938.tmp#id1475
Type TransportationServiceType
Properties
content: complex
Used by
Complex Type ConsignmentType
Model TransportServiceCode , TariffClassCode{0,1} , Priority{0,1} , FreightRateClassCode{0,1}
Children FreightRateClassCode, Priority, TariffClassCode, TransportServiceCode
Instance

<FinalDeliveryTransportationService>
  <TransportServiceCode languageID="" listAgencyID="" listAgencyName="" listID="" listName="" listSchemeURI="" listURI="" listVersionID="" name="">{1,1}</TransportServiceCode>
  <TariffClassCode languageID="" listAgencyID="" listAgencyName="" listID="" listName="" listSchemeURI="" listURI="" listVersionID="" name="">{0,1}</TariffClassCode>
  <Priority languageID="">{0,1}</Priority>
  <FreightRateClassCode languageID="" listAgencyID="" listAgencyName="" listID="" listName="" listSchemeURI="" listURI="" listVersionID="" name="">{0,1}</FreightRateClassCode>
</FinalDeliveryTransportationService>
Source

<xsd:element name="FinalDeliveryTransportationService" type="TransportationServiceType"/>
