Element DeliveryCustomerParty
Namespace urn:dgpe:names:draft:codice:schema:xsd:CommonAggregateComponents-2

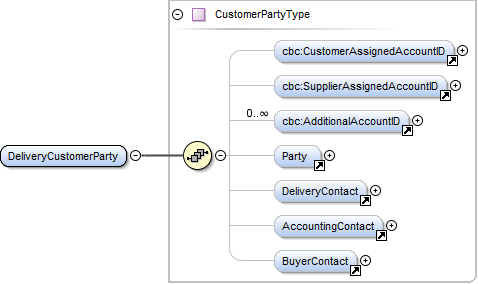

Diagram
Diagram CODICE-PLACE-EXT-1.2697.tmp#id390 CODICE-PLACE-EXT-1.2842.tmp#id392 CODICE-PLACE-EXT-1.2698.tmp#id394 CODICE-PLACE-EXT-1.2700.tmp#id387 CODICE-PLACE-EXT-1.2843.tmp#id396 CODICE-PLACE-EXT-1.2702.tmp#id397 CODICE-PLACE-EXT-1.2844.tmp#id398 CODICE-PLACE-EXT-1.2845.tmp#id389
Type CustomerPartyType
Properties
content: complex
Model CustomerAssignedAccountID{0,1} , SupplierAssignedAccountID{0,1} , AdditionalAccountID* , Party{0,1} , DeliveryContact{0,1} , AccountingContact{0,1} , BuyerContact{0,1}
Children AccountingContact, AdditionalAccountID, BuyerContact, CustomerAssignedAccountID, DeliveryContact, Party, SupplierAssignedAccountID
Instance
<DeliveryCustomerParty>
  <CustomerAssignedAccountID schemeAgencyID="" schemeAgencyName="" schemeDataURI="" schemeID="" schemeName="" schemeURI="" schemeVersionID="">{0,1}</CustomerAssignedAccountID>
  <SupplierAssignedAccountID schemeAgencyID="" schemeAgencyName="" schemeDataURI="" schemeID="" schemeName="" schemeURI="" schemeVersionID="">{0,1}</SupplierAssignedAccountID>
  <AdditionalAccountID schemeAgencyID="" schemeAgencyName="" schemeDataURI="" schemeID="" schemeName="" schemeURI="" schemeVersionID="">{0,unbounded}</AdditionalAccountID>
  <Party>{0,1}</Party>
  <DeliveryContact>{0,1}</DeliveryContact>
  <AccountingContact>{0,1}</AccountingContact>
  <BuyerContact>{0,1}</BuyerContact>
</DeliveryCustomerParty>
Source
<xsd:element name="DeliveryCustomerParty" type="CustomerPartyType"/>
