complexType CRLRefType

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	DigestAlgAndValue CRLIdentifier
used by	element  CRLRefsType/CRLRef
source	<xsd:complexType name="CRLRefType">   <xsd:sequence>     <xsd:element name="DigestAlgAndValue" type="DigestAlgAndValueType"/>     <xsd:element name="CRLIdentifier" type="CRLIdentifierType" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element CRLRefType/DigestAlgAndValue

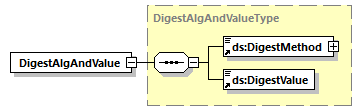

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	DigestAlgAndValueType
properties	content  complex
children	ds:DigestMethod ds:DigestValue
source	<xsd:element name="DigestAlgAndValue" type="DigestAlgAndValueType"/>

element CRLRefType/CRLIdentifier

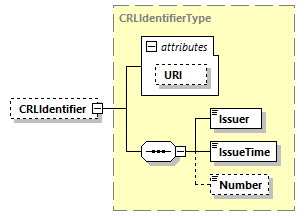

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	CRLIdentifierType
properties	minOcc  0 maxOcc  1 content  complex
children	Issuer IssueTime Number
attributes	Name   Type   Use   Default   Fixed   Annotation URI   xsd:anyURI   optional
source	<xsd:element name="CRLIdentifier" type="CRLIdentifierType" minOccurs="0"/>
