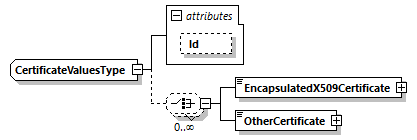

complexType CertificateValuesType

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	EncapsulatedX509Certificate OtherCertificate
used by	elements  AttrAuthoritiesCertValues CertificateValues
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xsd:ID   optional
source	<xsd:complexType name="CertificateValuesType">   <xsd:choice minOccurs="0" maxOccurs="unbounded">     <xsd:element name="EncapsulatedX509Certificate" type="EncapsulatedPKIDataType"/>     <xsd:element name="OtherCertificate" type="AnyType"/>   </xsd:choice>   <xsd:attribute name="Id" type="xsd:ID" use="optional"/> </xsd:complexType>

attribute CertificateValuesType/@Id

type	xsd:ID
properties	use  optional
source	<xsd:attribute name="Id" type="xsd:ID" use="optional"/>

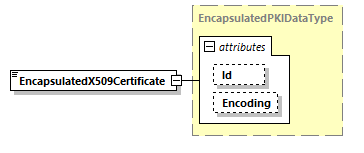

element CertificateValuesType/EncapsulatedX509Certificate

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	EncapsulatedPKIDataType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xsd:ID   optional         Encoding   xsd:anyURI   optional
source	<xsd:element name="EncapsulatedX509Certificate" type="EncapsulatedPKIDataType"/>

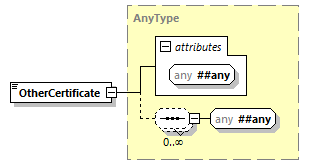

element CertificateValuesType/OtherCertificate

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	AnyType
properties	content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation
source	<xsd:element name="OtherCertificate" type="AnyType"/>
