complexType CompleteRevocationRefsType

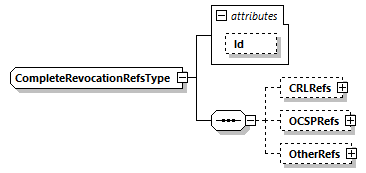

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	CRLRefs OCSPRefs OtherRefs
used by	elements  AttributeRevocationRefs CompleteRevocationRefs
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xsd:ID   optional
source	<xsd:complexType name="CompleteRevocationRefsType">   <xsd:sequence>     <xsd:element name="CRLRefs" type="CRLRefsType" minOccurs="0"/>     <xsd:element name="OCSPRefs" type="OCSPRefsType" minOccurs="0"/>     <xsd:element name="OtherRefs" type="OtherCertStatusRefsType" minOccurs="0"/>   </xsd:sequence>   <xsd:attribute name="Id" type="xsd:ID" use="optional"/> </xsd:complexType>

attribute CompleteRevocationRefsType/@Id

type	xsd:ID
properties	use  optional
source	<xsd:attribute name="Id" type="xsd:ID" use="optional"/>

element CompleteRevocationRefsType/CRLRefs

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	CRLRefsType
properties	minOcc  0 maxOcc  1 content  complex
children	CRLRef
source	<xsd:element name="CRLRefs" type="CRLRefsType" minOccurs="0"/>

element CompleteRevocationRefsType/OCSPRefs

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	OCSPRefsType
properties	minOcc  0 maxOcc  1 content  complex
children	OCSPRef
source	<xsd:element name="OCSPRefs" type="OCSPRefsType" minOccurs="0"/>

element CompleteRevocationRefsType/OtherRefs

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	OtherCertStatusRefsType
properties	minOcc  0 maxOcc  1 content  complex
children	OtherRef
source	<xsd:element name="OtherRefs" type="OtherCertStatusRefsType" minOccurs="0"/>
