complexType GenericTimeStampType

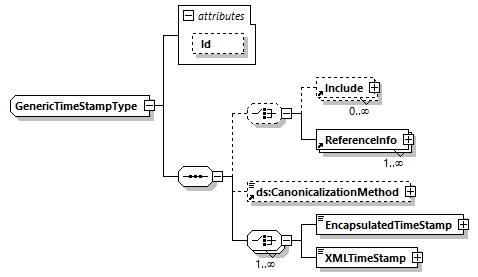

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
properties	abstract  true
children	Include ReferenceInfo ds:CanonicalizationMethod EncapsulatedTimeStamp XMLTimeStamp
used by	complexTypes  OtherTimeStampType XAdESTimeStampType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xsd:ID   optional
source	<xsd:complexType name="GenericTimeStampType" abstract="true">   <xsd:sequence>     <xsd:choice minOccurs="0">       <xsd:element ref="Include" minOccurs="0" maxOccurs="unbounded"/>       <xsd:element ref="ReferenceInfo" maxOccurs="unbounded"/>     </xsd:choice>     <xsd:element ref="ds:CanonicalizationMethod" minOccurs="0"/>     <xsd:choice maxOccurs="unbounded">       <xsd:element name="EncapsulatedTimeStamp" type="EncapsulatedPKIDataType"/>       <xsd:element name="XMLTimeStamp" type="AnyType"/>     </xsd:choice>   </xsd:sequence>   <xsd:attribute name="Id" type="xsd:ID" use="optional"/> </xsd:complexType>

attribute GenericTimeStampType/@Id

type	xsd:ID
properties	use  optional
source	<xsd:attribute name="Id" type="xsd:ID" use="optional"/>

element GenericTimeStampType/EncapsulatedTimeStamp

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	EncapsulatedPKIDataType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xsd:ID   optional         Encoding   xsd:anyURI   optional
source	<xsd:element name="EncapsulatedTimeStamp" type="EncapsulatedPKIDataType"/>

element GenericTimeStampType/XMLTimeStamp

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	AnyType
properties	content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation
source	<xsd:element name="XMLTimeStamp" type="AnyType"/>
