complexType RevocationValuesType

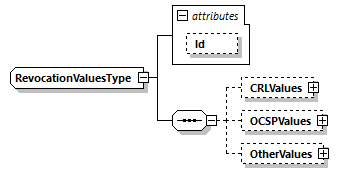

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	CRLValues OCSPValues OtherValues
used by	elements  AttributeRevocationValues RevocationValues
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xsd:ID   optional
source	<xsd:complexType name="RevocationValuesType">   <xsd:sequence>     <xsd:element name="CRLValues" type="CRLValuesType" minOccurs="0"/>     <xsd:element name="OCSPValues" type="OCSPValuesType" minOccurs="0"/>     <xsd:element name="OtherValues" type="OtherCertStatusValuesType" minOccurs="0"/>   </xsd:sequence>   <xsd:attribute name="Id" type="xsd:ID" use="optional"/> </xsd:complexType>

attribute RevocationValuesType/@Id

type	xsd:ID
properties	use  optional
source	<xsd:attribute name="Id" type="xsd:ID" use="optional"/>

element RevocationValuesType/CRLValues

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	CRLValuesType
properties	minOcc  0 maxOcc  1 content  complex
children	EncapsulatedCRLValue
source	<xsd:element name="CRLValues" type="CRLValuesType" minOccurs="0"/>

element RevocationValuesType/OCSPValues

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	OCSPValuesType
properties	minOcc  0 maxOcc  1 content  complex
children	EncapsulatedOCSPValue
source	<xsd:element name="OCSPValues" type="OCSPValuesType" minOccurs="0"/>

element RevocationValuesType/OtherValues

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	OtherCertStatusValuesType
properties	minOcc  0 maxOcc  1 content  complex
children	OtherValue
source	<xsd:element name="OtherValues" type="OtherCertStatusValuesType" minOccurs="0"/>
