complexType SignatureMethodType

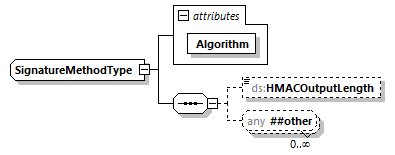

diagram CODICE-PLACE-EXT-1.4.1_diagrams/CODICE-PLACE-EXT-1.4.1_p3013.png
namespace http://www.w3.org/2000/09/xmldsig#
properties
mixed true
children ds:HMACOutputLength
used by
element SignatureMethod
attributes
Name  Type  Use  Default  Fixed  Annotation
Algorithm  xsd:anyURI  required
source <xsd:complexType name="SignatureMethodType" mixed="true">
  <xsd:sequence>
    <xsd:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>
    <xsd:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    <!-- (0,unbounded) elements from (1,1) external namespace -->
  </xsd:sequence>
  <xsd:attribute name="Algorithm" type="anyURI" use="required"/>
</xsd:complexType>

attribute SignatureMethodType/@Algorithm
type xsd:anyURI
properties
use required
source <xsd:attribute name="Algorithm" type="anyURI" use="required"/>

element SignatureMethodType/HMACOutputLength
diagram CODICE-PLACE-EXT-1.4.1_diagrams/CODICE-PLACE-EXT-1.4.1_p3014.png
namespace http://www.w3.org/2000/09/xmldsig#
type ds:HMACOutputLengthType
properties
minOcc 0
maxOcc 1
content simple
source <xsd:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
