complexType SignaturePolicyStoreType

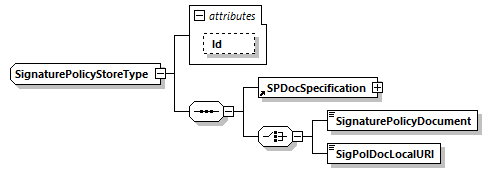

diagram
namespace	http://uri.etsi.org/01903/v1.4.1#
children	SPDocSpecification SignaturePolicyDocument SigPolDocLocalURI
used by	element  SignaturePolicyStore
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xsd:ID   optional
source	<xsd:complexType name="SignaturePolicyStoreType">   <xsd:sequence>     <xsd:element ref="SPDocSpecification"/>     <xsd:choice>       <xsd:element name="SignaturePolicyDocument" type="xsd:base64Binary"/>       <xsd:element name="SigPolDocLocalURI" type="xsd:anyURI"/>     </xsd:choice>   </xsd:sequence>   <xsd:attribute name="Id" type="xsd:ID" use="optional"/> </xsd:complexType>

attribute SignaturePolicyStoreType/@Id

type	xsd:ID
properties	use  optional
source	<xsd:attribute name="Id" type="xsd:ID" use="optional"/>

element SignaturePolicyStoreType/SignaturePolicyDocument

diagram
namespace	http://uri.etsi.org/01903/v1.4.1#
type	xsd:base64Binary
properties	content  simple
source	<xsd:element name="SignaturePolicyDocument" type="xsd:base64Binary"/>

element SignaturePolicyStoreType/SigPolDocLocalURI

diagram
namespace	http://uri.etsi.org/01903/v1.4.1#
type	xsd:anyURI
properties	content  simple
source	<xsd:element name="SigPolDocLocalURI" type="xsd:anyURI"/>
