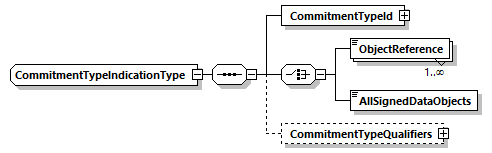

complexType CommitmentTypeIndicationType

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	CommitmentTypeId ObjectReference AllSignedDataObjects CommitmentTypeQualifiers
used by	element  CommitmentTypeIndication
source	<xsd:complexType name="CommitmentTypeIndicationType">   <xsd:sequence>     <xsd:element name="CommitmentTypeId" type="ObjectIdentifierType"/>     <xsd:choice>       <xsd:element name="ObjectReference" type="xsd:anyURI" maxOccurs="unbounded"/>       <xsd:element name="AllSignedDataObjects"/>     </xsd:choice>     <xsd:element name="CommitmentTypeQualifiers" type="CommitmentTypeQualifiersListType" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

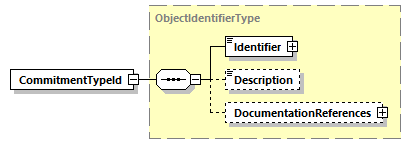

element CommitmentTypeIndicationType/CommitmentTypeId

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	ObjectIdentifierType
properties	content  complex
children	Identifier Description DocumentationReferences
source	<xsd:element name="CommitmentTypeId" type="ObjectIdentifierType"/>

element CommitmentTypeIndicationType/ObjectReference

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	xsd:anyURI
properties	minOcc  1 maxOcc  unbounded content  simple
source	<xsd:element name="ObjectReference" type="xsd:anyURI" maxOccurs="unbounded"/>

element CommitmentTypeIndicationType/AllSignedDataObjects

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
source	<xsd:element name="AllSignedDataObjects"/>

element CommitmentTypeIndicationType/CommitmentTypeQualifiers

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	CommitmentTypeQualifiersListType
properties	minOcc  0 maxOcc  1 content  complex
children	CommitmentTypeQualifier
source	<xsd:element name="CommitmentTypeQualifiers" type="CommitmentTypeQualifiersListType" minOccurs="0"/>
