complexType ObjectIdentifierType

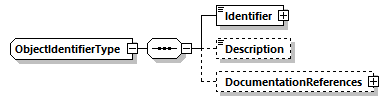

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	Identifier Description DocumentationReferences
used by	elements  CommitmentTypeIndicationType/CommitmentTypeId ObjectIdentifier DataObjectFormatType/ObjectIdentifier SignaturePolicyIdType/SigPolicyId SPDocSpecification
source	<xsd:complexType name="ObjectIdentifierType">   <xsd:sequence>     <xsd:element name="Identifier" type="IdentifierType"/>     <xsd:element name="Description" type="xsd:string" minOccurs="0"/>     <xsd:element name="DocumentationReferences" type="DocumentationReferencesType" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element ObjectIdentifierType/Identifier

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	IdentifierType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Qualifier   QualifierType   optional
source	<xsd:element name="Identifier" type="IdentifierType"/>

element ObjectIdentifierType/Description

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="Description" type="xsd:string" minOccurs="0"/>

element ObjectIdentifierType/DocumentationReferences

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	DocumentationReferencesType
properties	minOcc  0 maxOcc  1 content  complex
children	DocumentationReference
source	<xsd:element name="DocumentationReferences" type="DocumentationReferencesType" minOccurs="0"/>
