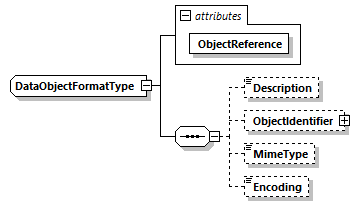

complexType DataObjectFormatType

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	Description ObjectIdentifier MimeType Encoding
used by	element  DataObjectFormat
attributes	Name   Type   Use   Default   Fixed   Annotation ObjectReference   xsd:anyURI   required
source	<xsd:complexType name="DataObjectFormatType">   <xsd:sequence>     <xsd:element name="Description" type="xsd:string" minOccurs="0"/>     <xsd:element name="ObjectIdentifier" type="ObjectIdentifierType" minOccurs="0"/>     <xsd:element name="MimeType" type="xsd:string" minOccurs="0"/>     <xsd:element name="Encoding" type="xsd:anyURI" minOccurs="0"/>   </xsd:sequence>   <xsd:attribute name="ObjectReference" type="xsd:anyURI" use="required"/> </xsd:complexType>

attribute DataObjectFormatType/@ObjectReference

type	xsd:anyURI
properties	use  required
source	<xsd:attribute name="ObjectReference" type="xsd:anyURI" use="required"/>

element DataObjectFormatType/Description

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="Description" type="xsd:string" minOccurs="0"/>

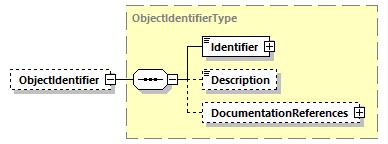

element DataObjectFormatType/ObjectIdentifier

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	ObjectIdentifierType
properties	minOcc  0 maxOcc  1 content  complex
children	Identifier Description DocumentationReferences
source	<xsd:element name="ObjectIdentifier" type="ObjectIdentifierType" minOccurs="0"/>

element DataObjectFormatType/MimeType

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="MimeType" type="xsd:string" minOccurs="0"/>

element DataObjectFormatType/Encoding

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	xsd:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xsd:element name="Encoding" type="xsd:anyURI" minOccurs="0"/>
