complexType SignaturePolicyIdType

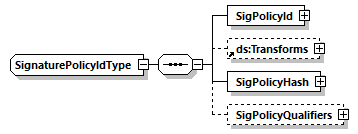

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
children	SigPolicyId ds:Transforms SigPolicyHash SigPolicyQualifiers
used by	element  SignaturePolicyIdentifierType/SignaturePolicyId
source	<xsd:complexType name="SignaturePolicyIdType">   <xsd:sequence>     <xsd:element name="SigPolicyId" type="ObjectIdentifierType"/>     <xsd:element ref="ds:Transforms" minOccurs="0"/>     <xsd:element name="SigPolicyHash" type="DigestAlgAndValueType"/>     <xsd:element name="SigPolicyQualifiers" type="SigPolicyQualifiersListType" minOccurs="0"/>   </xsd:sequence> </xsd:complexType>

element SignaturePolicyIdType/SigPolicyId

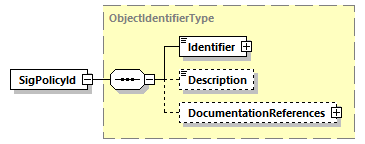

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	ObjectIdentifierType
properties	content  complex
children	Identifier Description DocumentationReferences
source	<xsd:element name="SigPolicyId" type="ObjectIdentifierType"/>

element SignaturePolicyIdType/SigPolicyHash

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	DigestAlgAndValueType
properties	content  complex
children	ds:DigestMethod ds:DigestValue
source	<xsd:element name="SigPolicyHash" type="DigestAlgAndValueType"/>

element SignaturePolicyIdType/SigPolicyQualifiers

diagram
namespace	http://uri.etsi.org/01903/v1.3.2#
type	SigPolicyQualifiersListType
properties	minOcc  0 maxOcc  1 content  complex
children	SigPolicyQualifier
source	<xsd:element name="SigPolicyQualifiers" type="SigPolicyQualifiersListType" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
